Abattoir Products







Abattoir Panel
NX-RSS220H 220CM X 60CM FIXED PANEL





NX-RSS95R 95CM X 40CM REMOTE PANEL







Allflex livestock EID reader systems are part of the NSW Government Farms of the Future AgTech Program





For more information on this program, click here







NX-RSS170H 170CM X 50CM FIXED PANEL





The NX-RSS Fixed Automated Antennas are built for abattoir environments and specifically designed to read all working EID ear tags and rumen pellets. There are 3 antenna size options to suit cattle, sheep, goats and pigs. The 220cm x 60cm and 170cm x 50cm panels have the control box mounted to the back and can be removed and remotely mounted if required. The system also has the option of being ordered with additional sensors capable of identifying if the carcass is missing or has a non-working EID tag. The small 95cm x 40 antenna panel is remote from the control box. An optional remote data box (model NX-RDB) can be purchased for when extra storage is needed.





NX-RSS220H 220CM X 60CM FIXED PANEL





NX-RSS95R 95CM X 40CM REMOTE PANEL





NX-RSS170H 170CM X 50CM FIXED PANEL





The NX-RSS Fixed Automated Antennas are built for abattoir environments and specifically designed to read all working EID ear tags and rumen pellets. There are 3 antenna size options to suit cattle, sheep, goats and pigs. The 220cm x 60cm and 170cm x 50cm panels have the control box mounted to the back and can be removed and remote mounted if required. The system also has the option of being ordered with additional sensors capable of identifying if the carcass is missing or has a non-working EID tag. The small 95cm x 40 antenna panel is remote from the control box. An optional remote data box (model NX-RDB) can be purchased for when extra storage is needed.





Primary Features





  • Top and Floor mounted options available
  • Built to withstand abattoir environment
  • Sends EID numbers directly to computer
  • Reads all ISO 11784/11785 compliant products
  • Reads Both HDX and FDX technologies





Optional Extras





  • NX-RDB Touchscreen Data Box
  • 10-amp Power supply with Noise Filters
  • HSK1 Hook sensor kit- includes 1 x hook sensor
  • HSK2 Hook sensor kit- includes 2 x hook sensors
  • HSK3 Hook and body sensor kit – includes 2 x hook sensors, 1 x body sensor







Abattoir Wand
MODEL NX-RSSW





The NX-RSSW Fixed Abattoir Wand is designed for processors wishing to manually read EID devices of animals during pre- or post-stunning on the kill floor. The NX-RSSW comes with its own power supply with Noise Filters and high visibility LEDs indicate when the reader is on and in operation. Standard wand length is 500mm with a 150mm handle. The NX-RSSW has no storage as the information is sent directly to a computer as the animal is being read. The system is built to withstand abattoir conditions.





Primary Features





  • Designed to read EID in an abattoir environment
  • Compatible with all major scales and software
  • Ability to create data templates for Data entry recording
  • Reads all ISO 11784/11785 compliant products
  • Sends EID numbers direct to computer





System Includes





  • Tag manager software (downloadable)
  • 20m serial data lead
  • 10-amp Power supply with Noise Filters

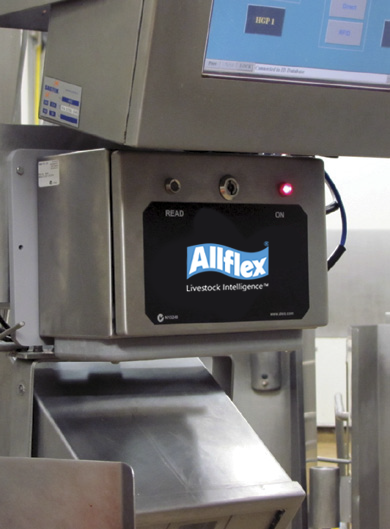

Abattoir Reader
MODEL NX-MSSP





The NX-MSSP is a custom-built abattoir reader specifically designed to read all working EID ear tags that have been removed from the animal. Ear tags are scanned by waving them across the antenna that is mounted under the stainless steel box. The NX-MSSP sends the file straight to the PC and has high visibility LEDs to indicate when the device is turned on and in operation. The system is built to withstand abattoir conditions.





Primary Features





  • Designed specifically to read EID ear tags that have been removed from the animal
  • Compatible with all major scales and software
  • Storage capacity of up to 1 million EID numbers
  • Reads all ISO 11784/11785 compliant products





System Includes





  • Tag manager software (downloadable)
  • 20m serial data lead
  • Power supply with Noise Filters

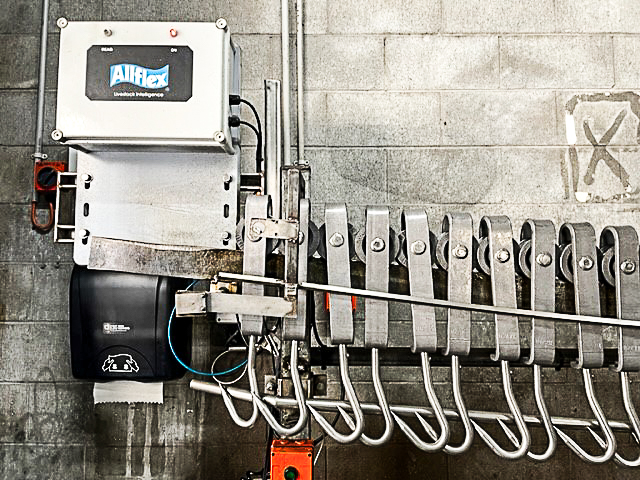

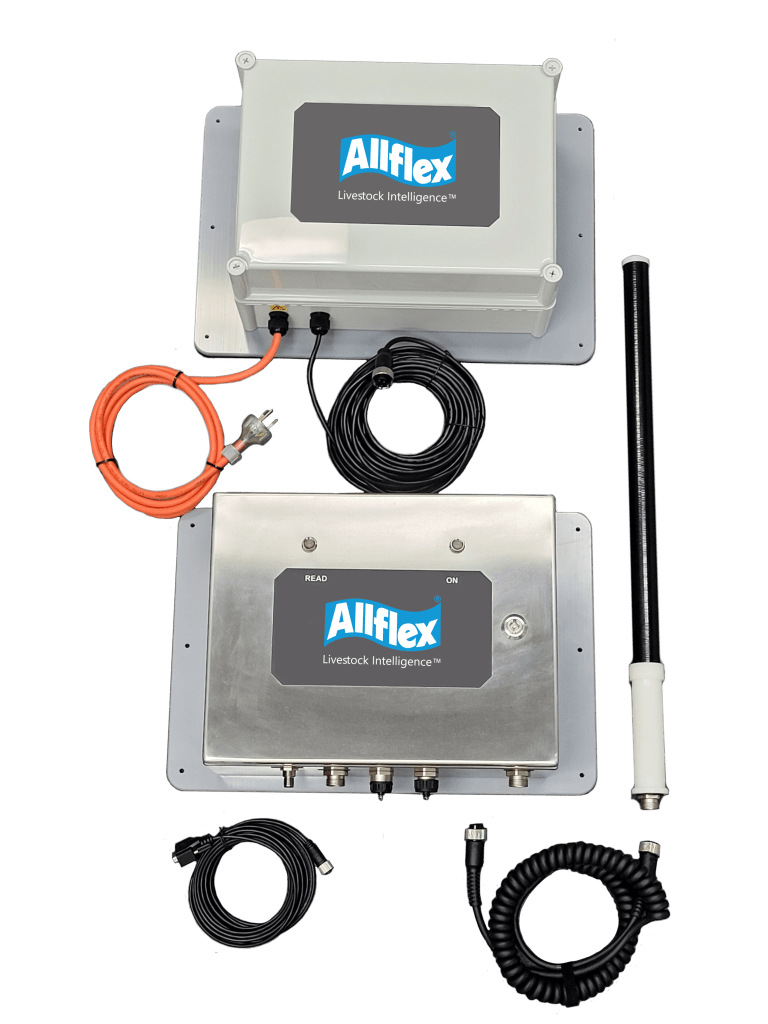

Hooktraka Systems
NX-HTP 40X20CM PANEL ANTENNA

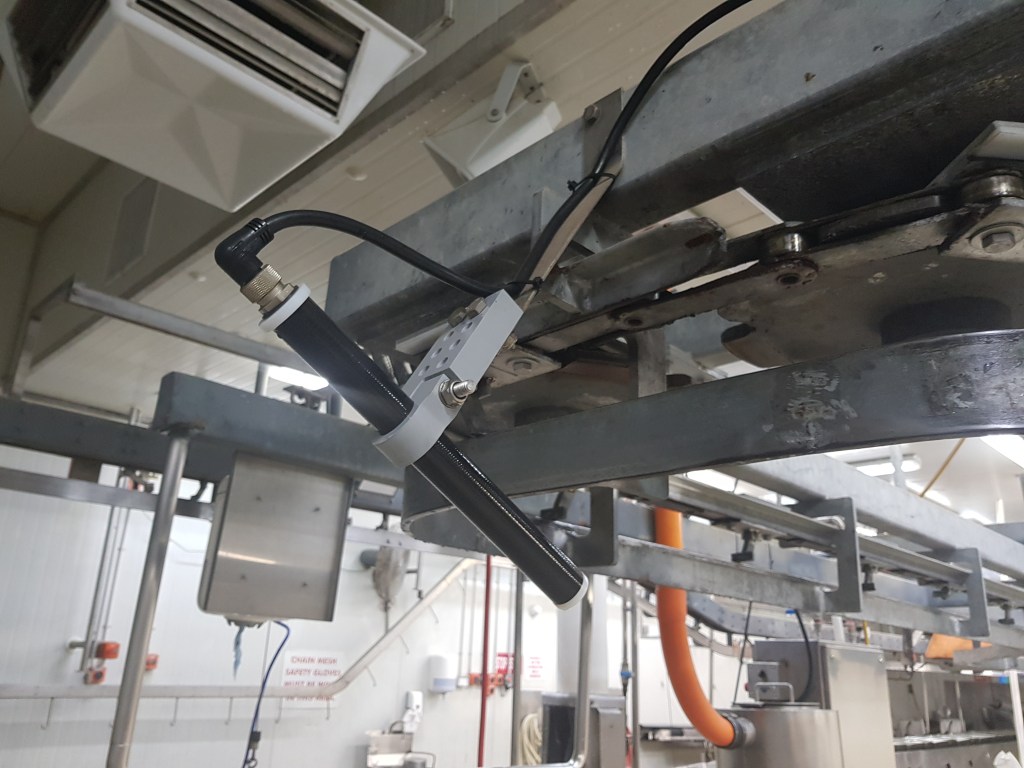

NX-HTW 30CM HOOKTRAKA WAND





NX-HTC HOOK CHECKER





The NX-HT Hooktraka Systems are specifically designed to record the identification of animal hooks moving through an abattoir. High visibility LEDs indicate when the unit is on and in operation. The system is designed to suit the requirements of an abattoir environment. The system also has the option of being ordered with additional sensors capable of identifying both the hook and body to ensure the matching of carcass numbers are accurate at all times.





Primary Features





  • Sends EID numbers directly to computer
  • Reads all ISO 11784/11785 compliant products
  • Reads Both HDX and FDX technologies
  • Built to withstand abattoir environment





System Includes





  • 20m serial data lead
  • 20m power cable





Optional Extras





  • NX-RDB Touchscreen Data Box
  • 10-amp Power supply with Noise Filters
  • HSK1 Hook sensor kit- includes 1 x hook sensor
  • HSK2 Hook sensor kit- includes 2 x hook sensors
  • HSK3 Hook and body sensor kit – includes 2 x hook sensors, 1 x body sensor














Hook Pellets





The NX-HP Hook Pellets have been installed in many leading processing facilities and provide complete data integrity, from the kill floor through to the boning room, and to the load out.





Each hook contains an embedded EID transponder which has a unique identity. The hooks are uniquely designed to withstand abattoir conditions from impact to chemical resistance, as well as the ability to withstand the high temperatures encountered in the cleaning process.





Primary Features





  • Embedded EID transponder
  • Built to withstand abattoir environment
