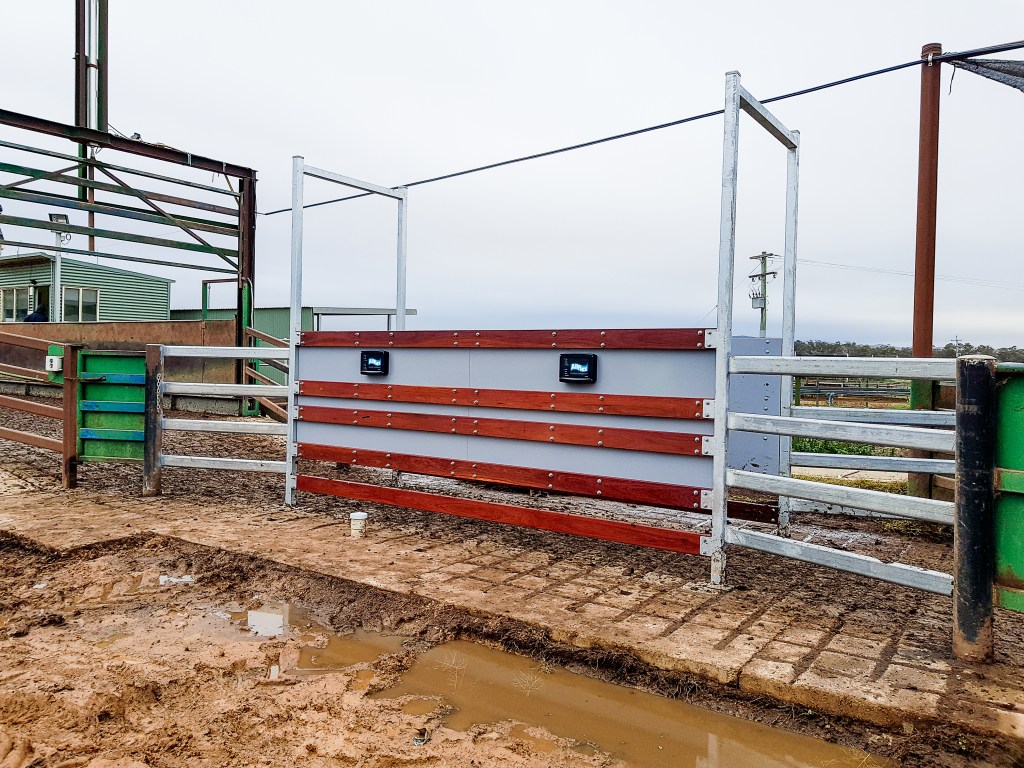

High Flow Lane Reader
MODEL NX-HF8

With exceptional accuracy, the NX-HF8 High Flow Lane Reader has been specifically developed for feedlot and saleyard applications and built to withstand the harshest of Aussie conditions. The NX-HF8 includes a high-contrast colour touchscreen NX-M Databox. The system has the unique ability to create data templates that can be customised to suit specific requirements. Provides a choice of Bluetooth and WiFi connectivity, as well as options for USB and serial data connection.

Primary Features

• Reads cattle at speed
• Designed not to restrict flow of cattle
• Stores up to 1 million cattle EID numbers
• Compatible with all major scales and software
• Reads all ISO 11784/11785 compliant products
• Won’t duplicate cattle EID numbers unless set

System Includes

• NX-RDB Touchscreen Data Box (steel enclosure optional)
• Tag manager software (downloadable)
• 5m serial data lead
• Power supply with Noise Filters

Fully Automated Multi-Read System

The NX-MR Multi-Read System is specifically designed for the simultaneous reading of large volumes of cattle moving down a lane in a saleyard or feedlot environment. Built to withstand the harshest of Aussie conditions, the fully automated Multi-Read System is designed to read EID ear tags and rumen pellets. The system is able to create data templates that can be customised to suit specific requirements. Provides a choice of Bluetooth and WiFi connectivity, as well USB and serial data connection.

Primary Features

• Simultaneous reading of large volumes
• High visibility LEDs
• Stores up to 1 million EID tag numbers
• Compatible with all major software
• Reads all ISO 11784/11785 products

System Includes

• NX-M Touchscreen (steel enclosure optional)
• Tag manager software (downloadable)
• Power supply with Noise Filters
• 5m serial data lead

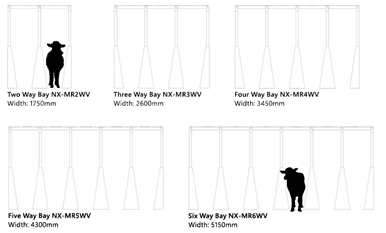

THE MULTI-READ SYSTEM IS AVAILABLE IN FIVE CONFIGURATIONS
NX-MR2WV, NX-MR3WV, NX-MR4WV, NX-MR5WV, AND NX-MR6WV

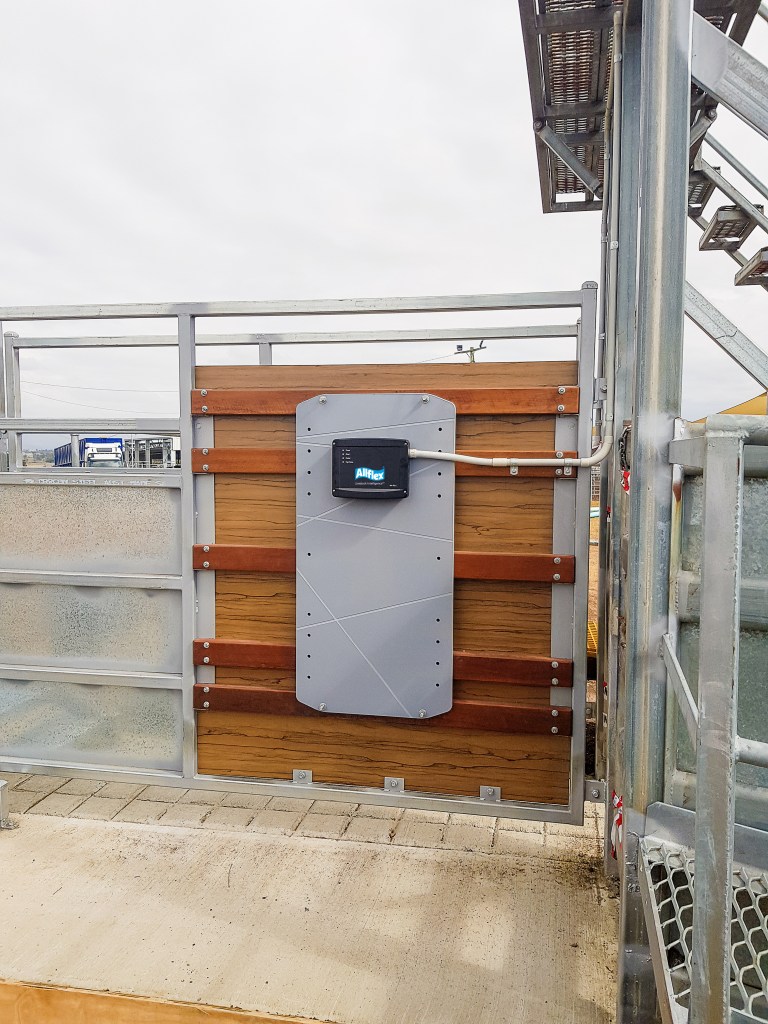

Dual Automated Race Antenna
MODEL NX-AB120HC

The reader system is designed for the load-in and load-out of cattle in feedlots, saleyards and on-property. The system consists of two antennas and 1200mm x 600mm panels. Each antenna is synchronised to ensure the reliable and accurate reading of animals at speed. Lights indicate when the device is turned on and in operation. Built to withstand the harshest of conditions, the NX-AB120HC system includes a high-contrast colour touchscreen NX-M Databox.

Primary Features

• Designed for load-in & out of cattle
• Two antenna design
• Stores up to 1 million tag numbers
• Compatible with all major software
• Reads all ISO 11784/11785 products
• Won’t duplicate cattle EID numbers
• Accurately reads cattle at speed

System Includes

• NX-M Touchscreen (steel enclosure optional)
• Tag manager software (downloadable)
• 5m serial data lead

Optional Extras

0322 10-amp power supply with Noise Filters

Single Walkthrough Reader for Sheep and Goats
Model NX-SWR

The NX-SWR single walkthrough reader is specifically designed for the reading of large volumes of sheep single file in a saleyard, feedlot or processor environment. It is built to withstand the harshest of conditions and reads EID ear tags and rumen pellets. The NX-SWR has high visibility LEDs that indicate when the reader is turned on and in operation and includes a high-contrast colour touchscreen NX-M Databox which has the unique ability to create data templates that can be customised to suit specific requirements. It comes with its own power supply and is compatible with all current software packages capable of storing EID numbers in real time.

Primary Features

• Fast accurate read rates
• Low baulk design
• Can be used in lane or ramp
• Stores and sends to PC, PDA, or Tablet
• Compatible with all major software
• Stores up to 1 million tag number

System Includes

• NX-M Touchscreen Data Box (steel enclosure optional)
• Tag manager software (downloadable)
• 5m serial data lead
• Power supply with Noise Filters
• Steel framework included

Dual Walkthrough Reader for Sheep and Goats
MODEL NX-DWR

The NX-DWR Dual Walkthrough Reader is specifically designed for the simultaneous reading of large

volumes of sheep in a saleyard, feedlot or processor environment. It is built to withstand the harshest of conditions and is designed to read a variety of EID ear tags and rumen pellets.

The NX-DWR has high visibility LEDs that indicate when the reader is turned on and in operation and

includes a high-contrast colour touchscreen NX-M Databox which has the unique ability to create data templates that can be customised to suit specific requirements. It comes with its own power supply and is also compatible with all current software packages capable of storing EID numbers in real time.

Primary Features

• Fast accurate read rates
• 2 lanes for flow
• Low baulk design
• Can be used in lane or ramp
• Stores & sends to PC, PDA, or Tablet
• Compatible with all major software
• Stores up to 1 million tag numbers

System Includes

• NX-M Touchscreen (steel enclosure optional)
• Tag manager software (downloadable)
• 5m serial data lead
• Power supply with Noise Filters
• Steel framework included

3-Way Draft for Sheep and Goats
MODEL NX-D3W

The NX-D3W 3-way Draft Reader is specifically designed for the simultaneous reading of large volumes of sheep exiting a draft in a saleyard environment. Built to withstand the harshest of conditions, the fully automated system is designed to read a variety of EID ear tags and rumen pellets. The NX-D3W has high visibility LEDs that indicate when the reader is turned on and in operation and includes a high contrast colour touchscreen NX-M Databox which has the unique ability that filters and sorts tag reads into separate sessions for each draft pen. It comes with its own power supply and is compatible with all current software packages capable of storing EID numbers in real time.

Primary Features

• Fast accurate read rates
• Adds zero time to drafting
• Colour touch screen control box
• Sorts EID’s in sale lots and records them in separate sessions
• Compatible with all major software
• Stores up to 1 million tag numbers

System Includes

• NX-M Touchscreen (steel enclosure optional)
• Tag manager software (downloadable)
• 5m serial data lead
• Power supply with Noise Filters
• Steel framework included

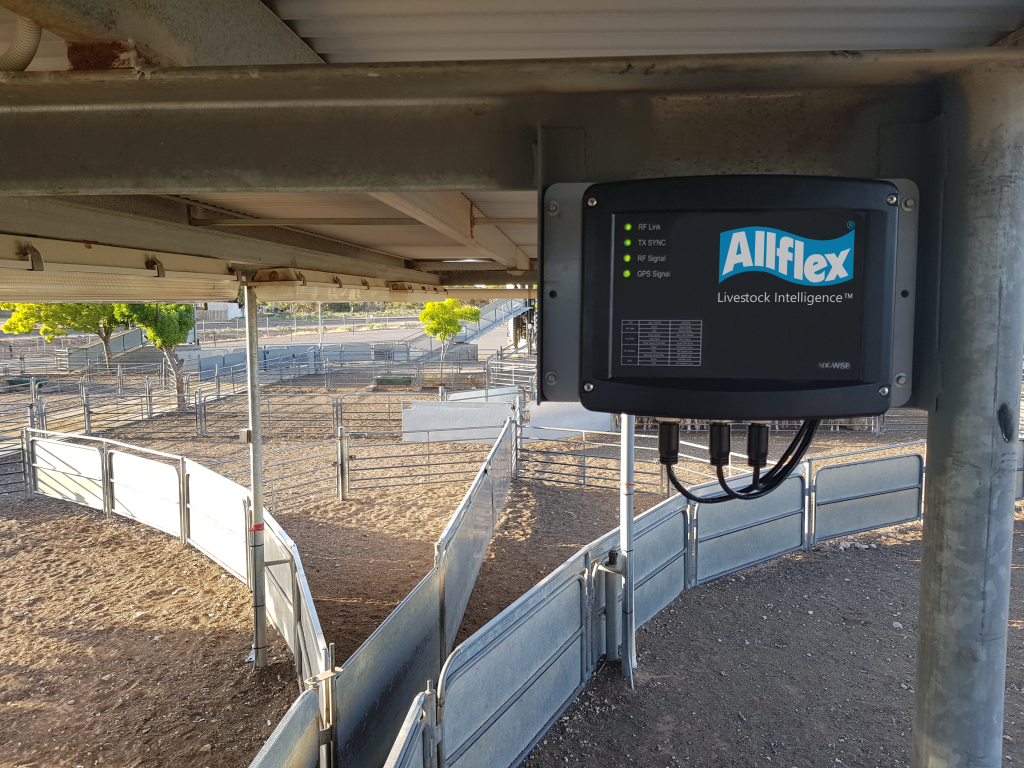

Wireless Synchronisation Box

MODEL NX-WSB

The NX-WSB Wireless Sync Box is design to eliminate cabling between reader systems to stop reader

interfering with each other. This system uses RF Technology and GPS to synchronise readers to ensure no interference occurs. The system includes viewable LED lights to indicate when the device is the controller or receiver, in sync and has RF and GPS signals. It is also built to withstand the harshest of conditions and no user input is required once set up.

Primary Features

• Designed for synchronising two or more NX reading systems
• No cables required between systems
• Utilising RF technology and GPS
• Highly accurate
• Duty cycle selectable
